Thrust 100 Kg
Fast electric struts for translation...
Thrust 100 Kg
Fast electric struts for translation
1000 N – Speed 36 mm/sec – Push-pull
Available with strokes from 100 to 2900 mm

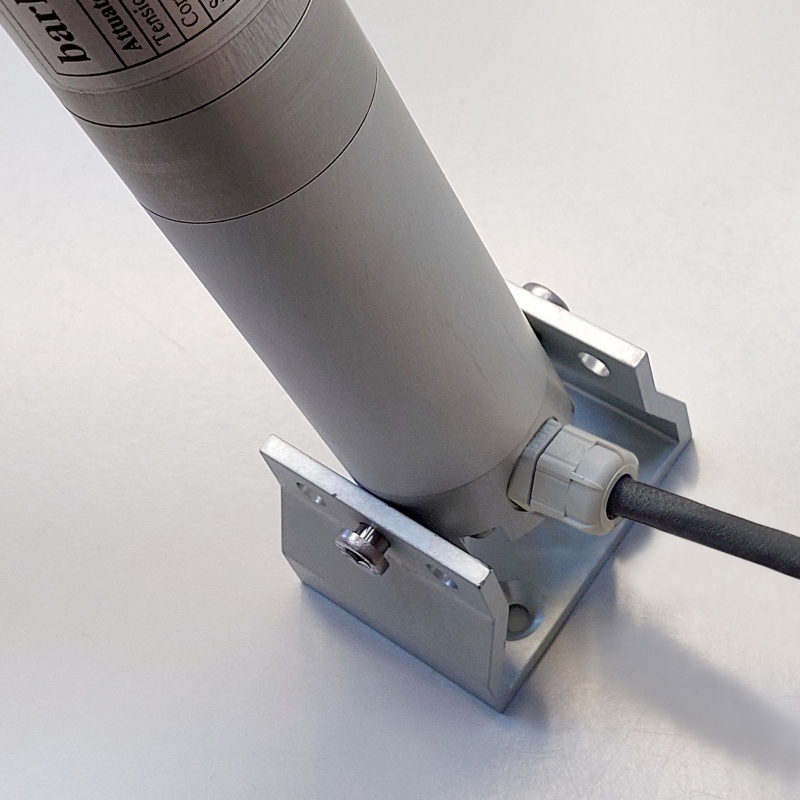

Cylinder, piston and brackets in anodized light alloy.
- Struts with a high translation speed (36 mm/sec), therefore suitables for long strokes, but not to lift loads.

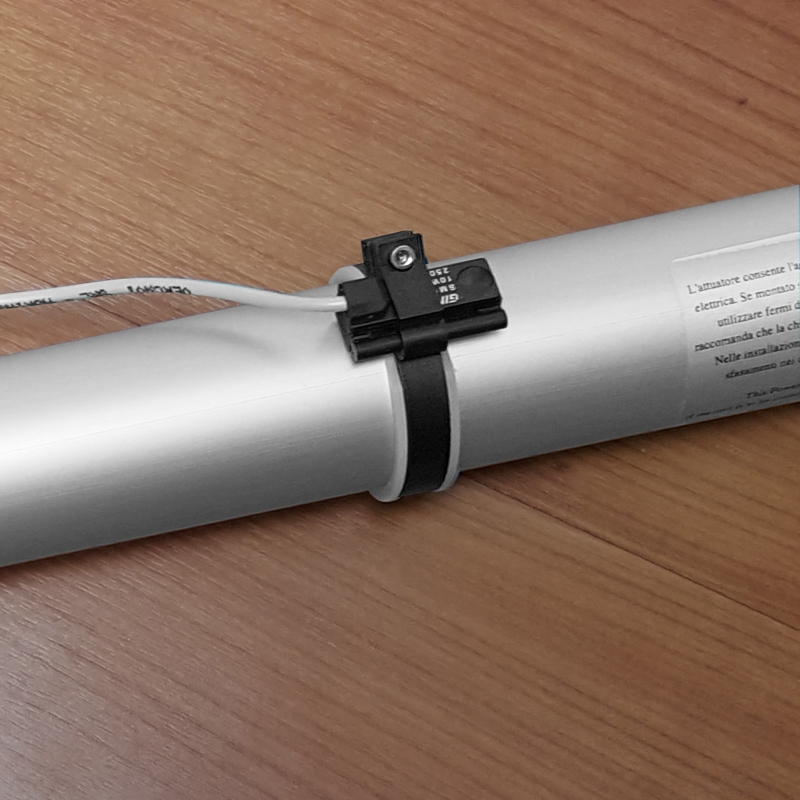

- The struts are equipped with an adjustable magnetic end of stroke.
- Available as a pair.
- Supplied with an electronic control box for each strut to control, protect against the overloads and 1.30 m power cable.
- On request version with adjustable magnetic end of stroke.
- It's necessary to add a 3 positions switch with automatic return to the OFF state.
- An acoustic movement warning is available on request.
- Available for 12 or 24VDC power.
HIGH SPEED VERSIONS: Ideal for handling structures with long stroke due to their high travel speed, not suitable for lifting.
It is essential that long struts are properly incurred if positioned horizontally to prevent flex. Equipped with magnetic limit.
ENCODER: Struts for installation in pairs, equipped with encoded electronics and control box (ENCODER) to obtain a perfect synchronization, even when subject to different loads. It is possible, where permitted by law, to store up to four different and independent end positions, pre-set by the user at the time of installation, selectable with just a short press of a single button. Can also be used individually when such a precise movement is required, defining a different points of start and end of stroke. Come with set-up and operating keyboard (ENCODER). Optional extension cable of 2 - 5 or 8 m.
| Item | Mounting | Push | Synchro | Stroke | Volt | Weight |
Code |
| 709701/F/12 | push-pull | end of stroke | 970 mm | 12 | 5 Kg | 09.64.09701 | |
| 709701/F/24 | push-pull | end of stroke | 970 mm | 24 | 5 Kg | 09.64.09702 | |
| 714701/F/12 | push-pull | end of stroke | 1470 mm | 12 | 09.64.14701 | ||
| 714701/F/24 | push-pull | end of stroke | 1470 mm | 24 | 09.64.14702 | ||
| 719701/F/12 | push-pull | end of stroke | 1970 mm | 12 | 09.64.19701 | ||
| 719701/F/24 | push-pull | end of stroke | 1970 mm | 24 | 09.64.19702 | ||
| ES709701/12 | push-pull | encoder | 970 mm | 12 | 09.68.09701 | ||
| ES709701/24 | push-pull | encoder | 970 mm | 24 | 09.68.09702 | ||
| ES709701/2/12 | pair | push-pull | encoder | 970 mm | 12 | 12 Kg | 09.70.09701 |
| ES709701/2/24 | pair | push-pull | encoder | 970 mm | 24 | 12 Kg | 09.70.09702 |
| ES714701/12 | push-pull | encoder | 1470 mm | 12 | 09.68.14701 | ||
| ES714701/24 | push-pull | encoder | 1470 mm | 24 | 09.68.14702 | ||
| ES714701/2/12 | pair | push-pull | encoder | 1470 mm | 12 | 09.70.14701 | |
| ES714701/2/24 | pair | push-pull | encoder | 1470 mm | 24 | 09.70.14702 | |
| ES719701/12 | push-pull | encoder | 1970 mm | 24 | 09.68.19701 | ||
| ES719701/24 | push-pull | encoder | 1970 mm | 12 | 09.68.19702 | ||
| ES719701/2/12 | pair | push-pull | encoder | 1970 mm | 12 | 09.70.19701 | |
| ES719701/2/24 | pair | push-pull | encoder | 1970 mm | 24 | 09.70.19702 |
-
-
-
Set-up and operating keyboard for units with encoder Made in plastic with circuits immersed in a waterproof resin The mechanics of the keys has been tested for millions of workings. Equipped with a Led lighting system. The diameter of the mounting hole is a standard size. Connected to the cable coming from the keyboard by means of a...
-
Extension cables for units with encoder (optional) ––––––––––––––––––––––––––––––––––––––––––– 01167 Length 2 m – Weight 260 g Reference: 09.99.00054 –––––––––––––––––––––––––––––––––––––– 01168 Length 5 m – Weight 520 g Reference: 09.99.00055 ––––––––––––––––––––––––––––––––––––––– 01180 Length 8 m – Weight 755 g Reference: 09.99.00059
-
For BARKA's cables with plug (optional) Body black in glass fiber reinforced polymer Drill a 31(+1) mm hole in the chosen position considering the 60 mm dia and 10 mm thick base. Pass the plug through the hole, then insert the cable in the side groove of the gland keeping the base on the inlet side. Insert the stem of the gland into the...
-
