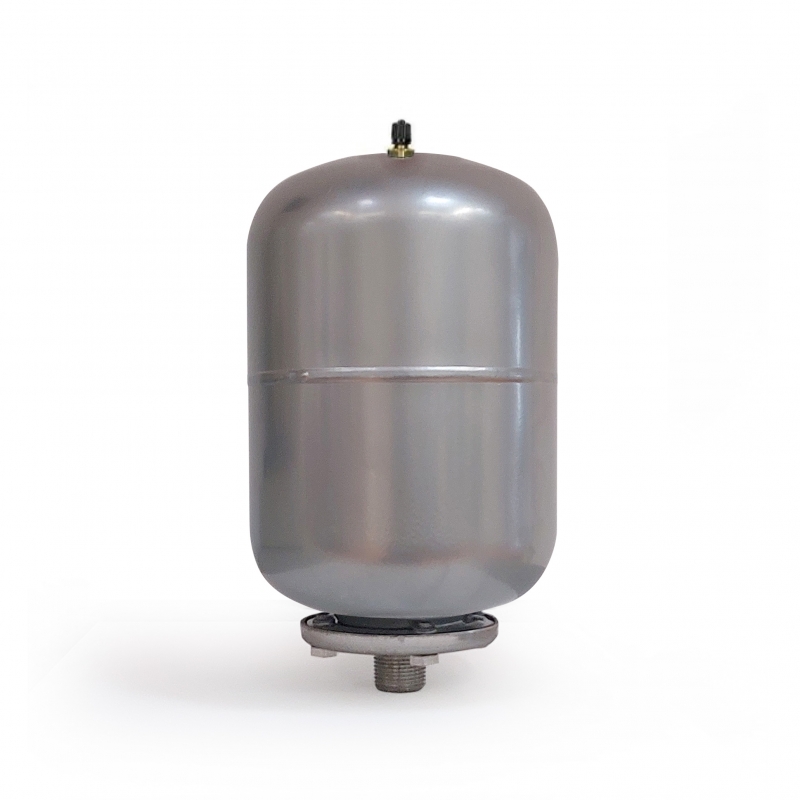

AFC/2L-ss

Expansion tank for pressure pumps

Improves the water flow smoothing it and protect the pump reducing the number of start and stop

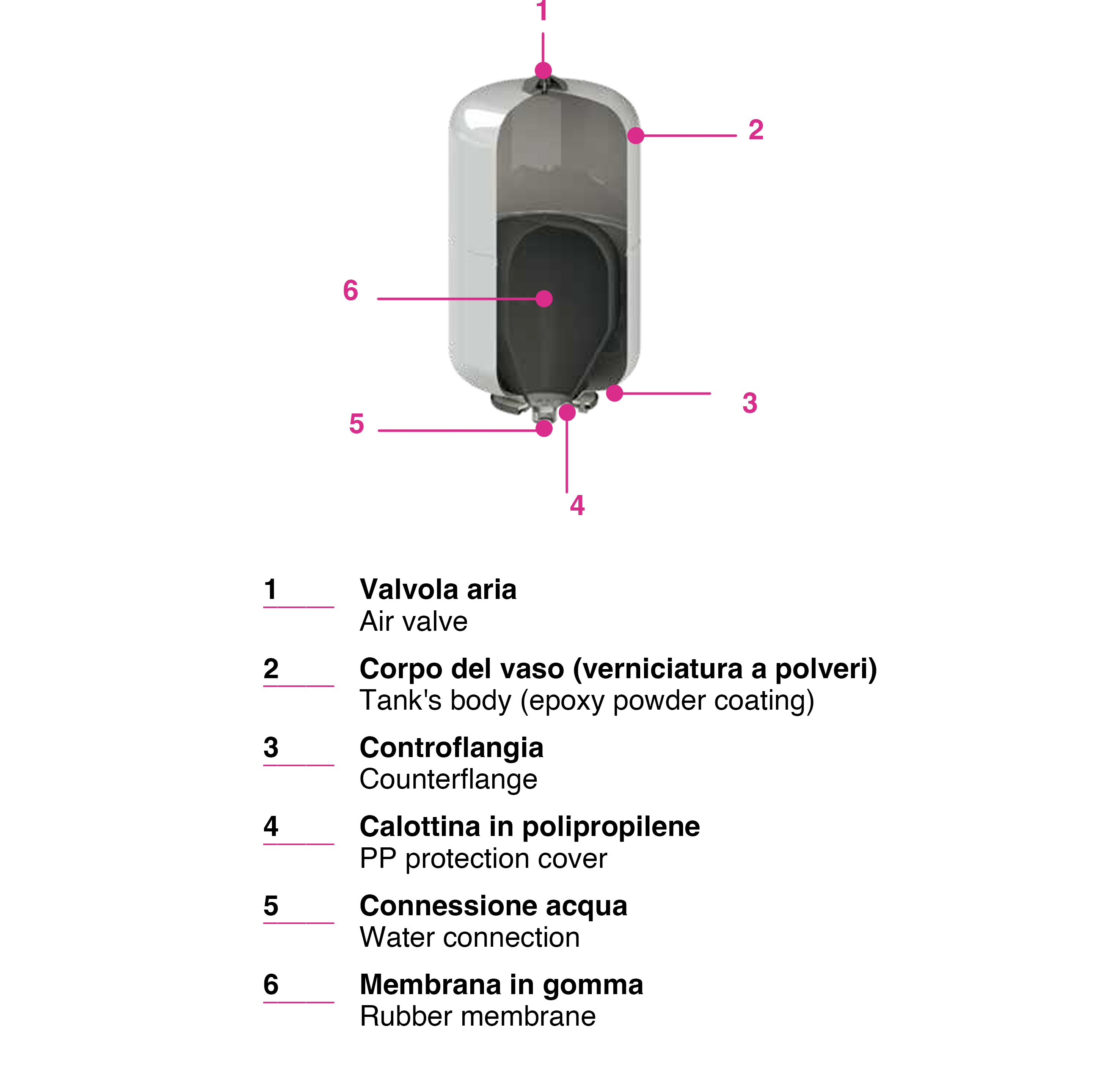

• Body in steel, coated with epoxy paints.
• Replaceable diaphragm in food grade rubber: it divides the air under pressure from the water preventing its removal.

• Built-in valve for the set-up of the air pressure considering the cut-out pressure of the pump.

• Counterflange with 1/2” male BSP connection in stainless steel.

Max working pressure: 10 bar
Test pressure: 14,3 bar
Pre-charge pressure: 3,5 +/- 0,3 bar
Working temperature: -10/+100 °C
