P21290GP

02.01.30003

Connection dia 40 mm
Weight 890 g

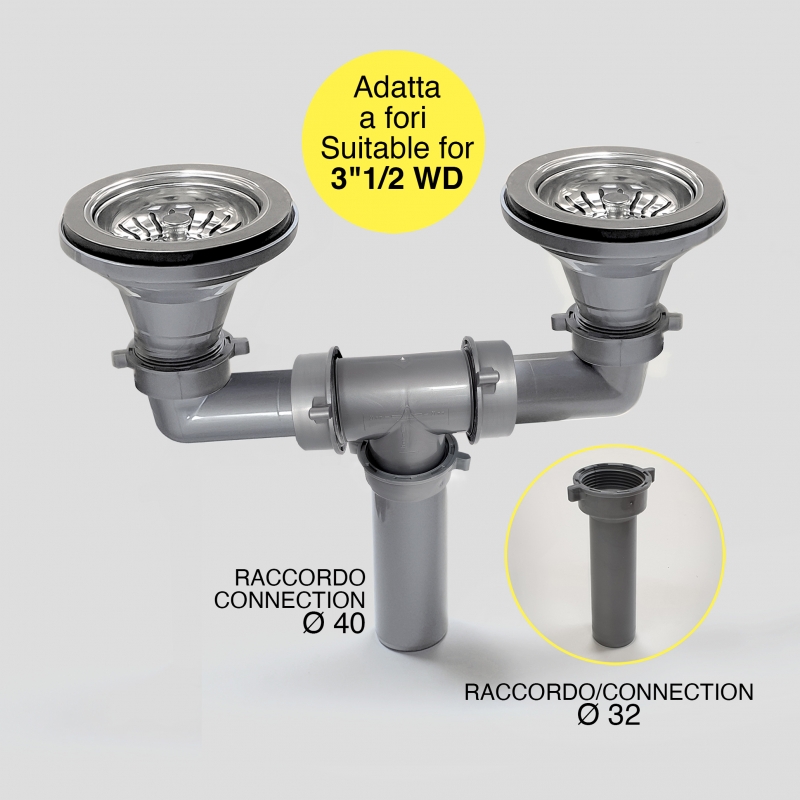

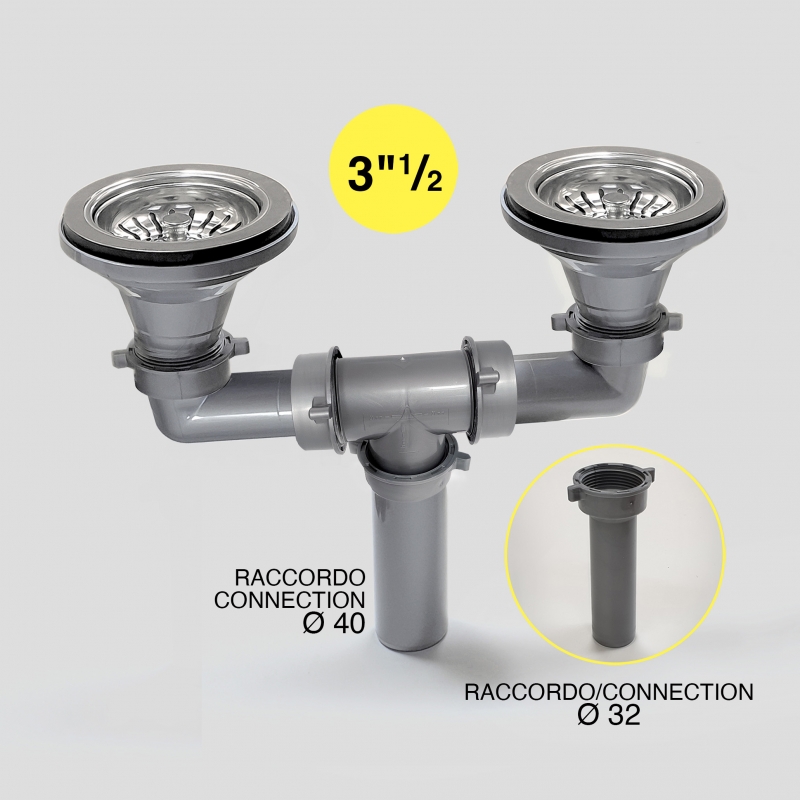

Double waste drainer

WITH REMOVABLE GRID/PLUG

Suitable for 3"1/2 WD – Minimum dia hole: 88 mm

––––––––––––––––––––––––––––––––––––––
Weight 884 g
––––––––––––––––––––––––––––––––––––––

More details

Request information >

  • This kit allows to empty two sinks in the same drain.
  • The length fo the elbow pipes enables to connect 2 basins also if the holes are far away.
  • The accurate manufacture and the first quality materials assure perfect tightness and long working life.
  • The removable grid/plug allows the collection of solid residues, intended for the dustbin, so as not to clog the drain pipe.
  • Silver-grey polypropylene body.
    CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect.
  • AISI 304 stainless steel grids and screws.
  • PVC gasket.



  • Waste drainer 1"1/2 M BSP suitable for 3"1/2 holes (88 mm) WITH REMOVABLE GRID/PLUG The removable grid/plug allows the collection of solid residues, intended for the dustbin, so as not to clog the drain pipe. The size are the same of the garbage disposers with which can be coupled in the twin sink. Allows the use of straight or elbows drain...

  • Straight pipe dia 1"1/2 F BSP x 40 mm with fixed threaded ring nut Made in silver-grey polypropylene CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 37 g

  • Elbow pipe dia 1"1/2 F BSP x 40 mm with mobile threaded ring nut Made in silver-grey polypropylene CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 88 g It can be connected directly to waste drainers 1"1/2 M BSP  PI1235 - PI1235GR - PI1260GP - PI1290GP

  • 'T' adaptor Ø 40 mm x 1"1/2 F BSP It can be connected to two elbows PE1240 to produce a double drainer kit P21235 Made in silver-grey polypropylene CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 57 g
