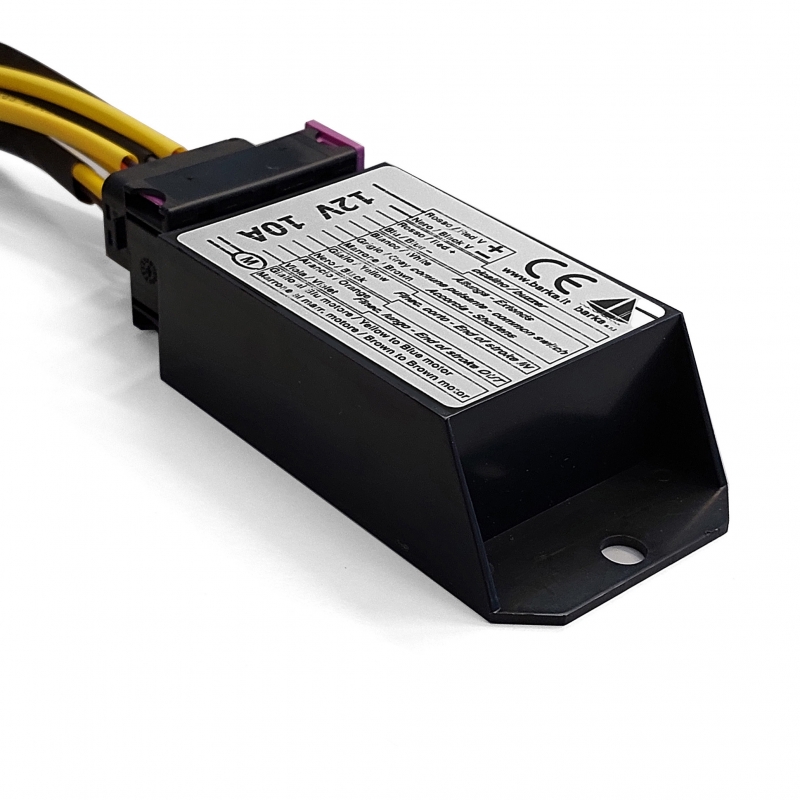

Control box

Built in plastic with the electronics sealed in a self-extinguishing resin

• Supplied with a cable with quick coupling for the electric connections.
• The bundle of cables allows the connection to the motor, the power and to the up-down-off switch.
• Also availables the wires for the buzzer and end of stroke (optionals): if not used must be insulated.
• A slow fuse of the value written on the label of the item must be inserted on the positive power line.
• When requested to replace an older version, if used as a pair, both must be replaced.

Control box wiring diagram

Paired control boxes wiring diagram
