TWO STAGES
Two stages electric struts Max load...

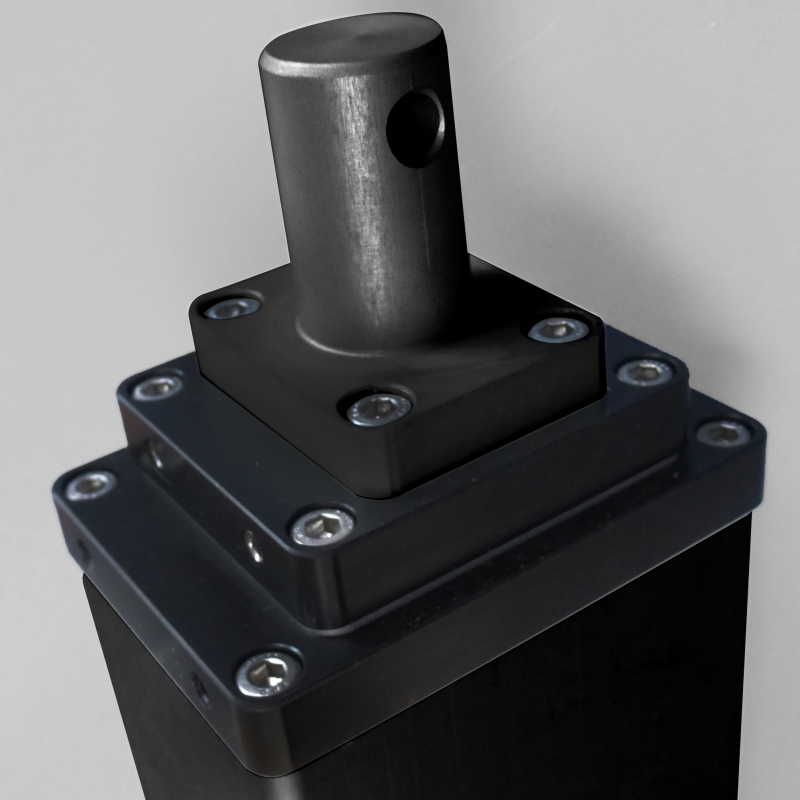

TWO STAGES
Two stages electric struts

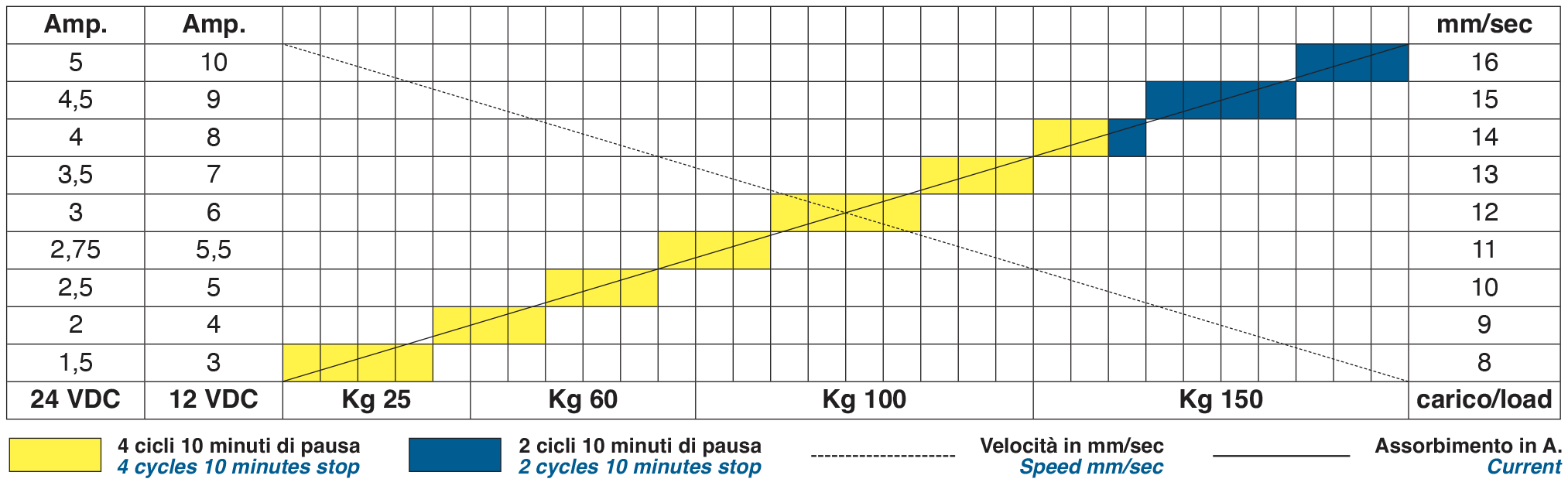

Max load (Stroke) 150 Kg
Push-pull
“Push/pull” version is required if the closing is not helped by the weight of the object moved.
Single or pair mounting
Synchronization with encoder
Available for 12 or 24VDC power
Body and brackets made in anodized light alloy. Push and pull version.
To protect the motor from dripping water in an exposed location the smaller section must be the lower.
- Space-saving struts, if compared with the stroke, therefore suitable for complex installations
- Allows the set-up of electronic end of stroke and to insert up to a maximum of 4 intermediate arrest points.
- Can be used to synchronize a pair, equipped with encoded electronics and control box (ENCODER) (supplied with 2 m motor cable) , or for groups made of a maximum of 6 struts.
- Supplied with a set-up and operating keyboard (ENCODER) and the normal use.
- It's possible to install a 3 positions switch to replace the keyboard for routine operations.
- Optional extension cable of 2 - 5 or 8 m.
Our expertise built in 15 years of prduction of electric struts for the nautical sector, has enabled us to introduce a range of telescopic, two stages, push and pull struts , outstanding for the reduced length/stroke ratio.
Made with a body in anticorodal anodized aluminum and stainless steel worms, to provide the maximum resistance to corrosion, grant a push and pull power of 150 Kg.
Made without and with encoder, the latest allows to handle electronically the end of stroke and the Automatic Translation Points.
The encoded versions can be installed as one synchronized pair or as more pairs to be handled in a concatenated chain, all that operated from a simple keyboard.
Stroke 350 mm
| Item | Mounting | Push | Synchronization | Volt | Reference |
| ES20350/12 | push-pull | encoder | 12 | cod. 09.95.00101 | |
| ES20350/24 | push-pull | encoder | 24 | cod. 09.95.00102 | |
| ES20350/2/12 | pair | push-pull | encoder | 12 | cod. 09.95.00201 |
| ES20350/2/24 | pair | push-pull | encoder | 24 | cod. 09.95.00202 |
Stroke 400 mm
| Item | Mounting | Push | Synchronization | Volt | Reference |
| ES20400/12 | push-pull | encoder | 12 | cod. 09.95.00103 | |
| ES20400/24 | push-pull | encoder | 24 | cod. 09.95.00104 | |
| ES20400/2/12 | pair | push-pull | encoder | 12 | cod. 09.95.00203 |
| ES20400/2/24 | pair |
push-pull | encoder | 24 | cod. 09.95.00204 |
Stroke 500 mm
| Item | Mounting | Push | Synchronization | Volt | Reference |
| ES20500/12 | push-pull | encoder | 12 | cod. 09.95.00105 | |
| ES20500/24 | push-pull | encoder | 24 | cod. 09.95.00106 | |
| ES20500/2/12 | pair | push-pull | encoder | 12 | cod. 09.95.00205 |
| ES20500/2/24 | pair | push-pull | encoder | 24 | cod. 09.95.00206 |
-
-
-
Set-up and operating keyboard for units with encoder Made in plastic with circuits immersed in a waterproof resin The mechanics of the keys has been tested for millions of workings. Equipped with a Led lighting system. The diameter of the mounting hole is a standard size. Connected to the cable coming from the keyboard by means of a...
-
Extension cables ONLY for units with encoder (optional) ––––––––––––––––––––––––––––––––––––––––––– 01167 Length 2 m – Weight 260 g For 12 and 24 VDC systems Reference: 09.99.00054 –––––––––––––––––––––––––––––––––––––– 01168 Length 5 m – Weight 520 g For 12 and 24 VDC systems Reference: 09.99.00055 –––––––––––––––––––––––––––––––––––––––...
-
For BARKA's cables with plug (optional) Body black in glass fiber reinforced polymer Drill a 31(+1) mm hole in the chosen position considering the 60 mm dia and 10 mm thick base. Pass the plug through the hole, then insert the cable in the side groove of the gland keeping the base on the inlet side. Insert the stem of the gland into the...
-
