PDX4090GP*

02.01.30004

Connection dia 40 mm
Weight 794 g

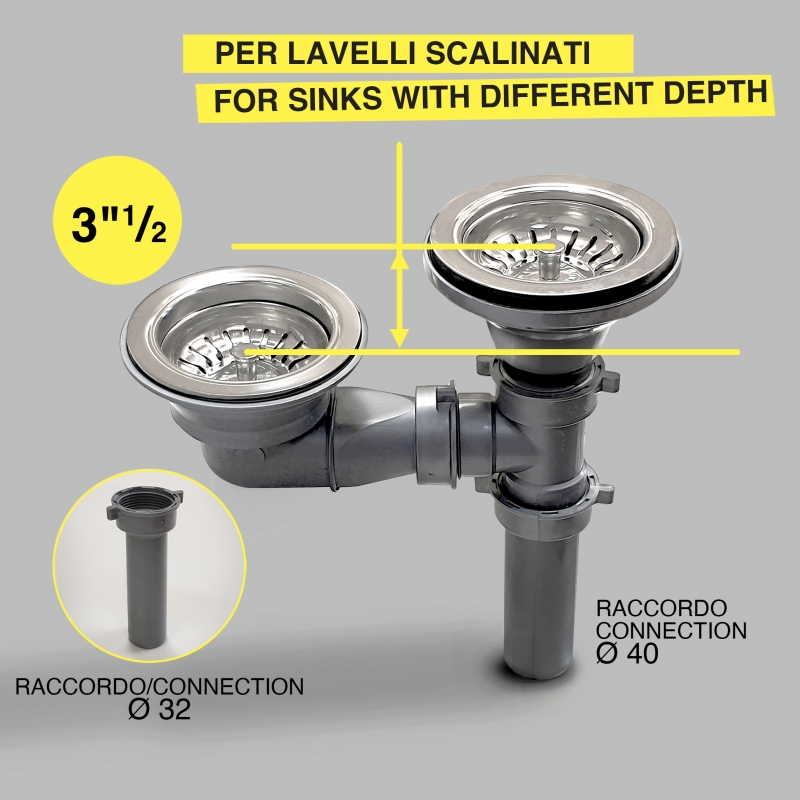

Double waste drainer
for sinks with different depth

WITH REMOVABLE GRID/PLUG

Suitable for 3"1/2 WD – Minimum dia hole: 88 mm
––––––––––––––––––––––––––––––––––––––
Weight 788 g
––––––––––––––––––––––––––––––––––––––

More details

Request information >

  • This kit allows to empty two sinks with different depth in the same drain.
  • The asymmetric drain hose help to free some space under the sinks.
  • The accurate manufacture and the first quality materials assure perfect tightness and long working life.
  • The removable grid/plug allows the collection of solid residues, intended for the dustbin, so as not to clog the drain pipe.
  • Silver-grey polypropylene body.
    CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect.
  • AISI 304 stainless steel grids and screws.
  • PVC gasket.

  • Waste drainer 1"1/2 M BSP suitable for 3"1/2 holes (88 mm) WITH REMOVABLE GRID/PLUG The removable grid/plug allows the collection of solid residues, intended for the dustbin, so as not to clog the drain pipe. The size are the same of the garbage disposers with which can be coupled in the twin sink. Allows the use of straight or elbows drain...

  • Waste drainer 1"1/2 M BSP suitable for 3"1/2 holes (88 mm) WITH REMOVABLE GRID/PLUG The horizontal removable pipe can rotate over 360° and can be connected to a 90° elbow supplied as standard. Elbow drainer Large drainer with a limited projection under the sink. The removable grid/plug allows the collection of solid residues, intended for the...

  • Straight pipe dia 1"1/2 F BSP x 40 mm with fixed threaded ring nut Made in silver-grey polypropylene CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 37 g

  • 'T' adaptor  1"1/2 F BSP x Ø 40 mm x 1"1/2 M BSP It can be connected to one waste drainer 1"1/2 M BSP and one elbow PE1240 to produce an asymmetric double drainer kit. Made in silver-grey polypropylene CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 52 g
